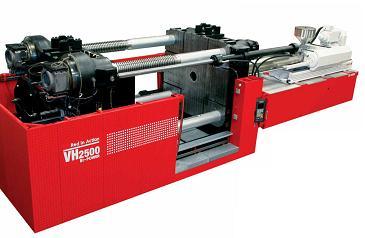

Bi-Power Two Platen Machine

A range of two-platen machines from 1,200 to 6,000 tonnes.

Small, compact injection moulding machine: thanks to its 2-platen closing system and 2-cylinder injection assembly the design is smaller than on an in-line injection unit and the clamp unit can easily be adapted to meet mould opening stroke requirements.

The press is equipped with an integrated, modular system with variable-delivery pumps and an inverter with vector control on plasticizing screw rotation to provide optimal overlap performance on three essential movements (screw rotation, mould movements and ejection or core movements). Full movement performance is maintained even during overlapping (shorter cycle times, improved energy efficiency).

The automatic tie bar removal system is an option that provides much-needed flexibility where mould changes are carried out under difficult conditions, such as with a low ceilings, bulky moulds, etc. (management).

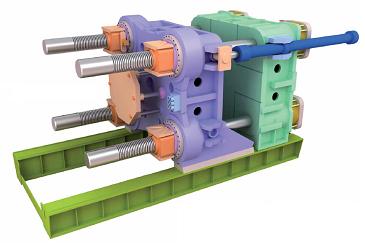

High-rigidity platens and wide guides on the sides of the mobile plate provide increased control of the parallelism between the mobile and fixed plates and, consequently, the mould: the result is less wear on the moulds and greater closing accuracy (reliability, precision).
