Special nozzles

Multi-tip nozzlesg
The hot-runner nozzles for side gating give you the ideal scope in designing your hot-runner systems. Special attention was paid therefore to cost effectiveness and simple maintenance, for example hot-runner nozzle OktaFlow? with undivided inserts! Optional: Nozzle tips made of wear protection for processing filled materials. We shall be happy to provide an as-fitted drawing for your application.

26LHT hot-runner nozzle with up to 4 tips for side gating under 90? without cold slugs, in combination with a manifold. The individual nozzle tips cannot be influenced directly. With divided inserts!

Hot-runner nozzle OktaFlow? type OMT with 8 tips for side multi-tip gating (under 90?) without cold slugs. Optimum temperature developement thanks to heating in the nozzle tip area. Cost-efficient, that undivided inserts. Hot-runner nozzle OktaFlow? can be used as a single nozzle with heated adaptor.

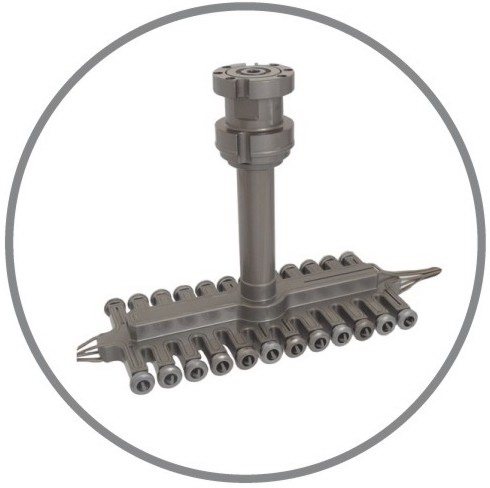

Hot-runner nozzle PektaFlow? type PLT with up to 24 tips for side multi-tip gating (under 90?) without cold slugs. Optimum temperature developement thanks to heating in the nozzle tip area. To require divided inserts. Hot-runner nozzle PektaFlow can be used as a single nozzle with heated adaptor.

Verticale gating
The hot-runner nozzles for the vertical gating were developed to give you the optimum scope in designing your hot-runner systems.

The 26ZET single nozzle with up to 4 tips allows high quantities of cavities while avoiding complex control engineering. The individual nozzle tips cannot be influenced directly.

Accordingly the SMHT/DMHT nozzle series is perfect for the multi-tip gating of small parts and that with close cavity spacing. However high the requirements are in terms of gate position, tear-off quality and shot weight, the SMHT/DMHT nozzle line proves to be flexible and extremely adaptable to complex demands. Another advantage for your applications: the temperature of each tip on the SMHT/DMHT nozzles can be regulated separately. The injection is direct and is also suitable for the internal injection of moulded parts. The nozzles allow a gentle flow of melt and permit the use of compact multi-cavity moulds with close cavity spacing.

An extended nozzle tip is recommended for injection onto products with different levels of height and for sprue-free injection in confined spaces.

DIN EN ISO 9001:2008 certification.
